3D Laser scan Hotel Roof Top – Charring Cross
3D Laser scan and 4K 360 degree photo walkthrough of existing Air handling unit, chilled water and heating services.
Revit with point cloud inserted.
Screenshot from Revit with point cloud inserted, existing pipework traced over and new design over layed.

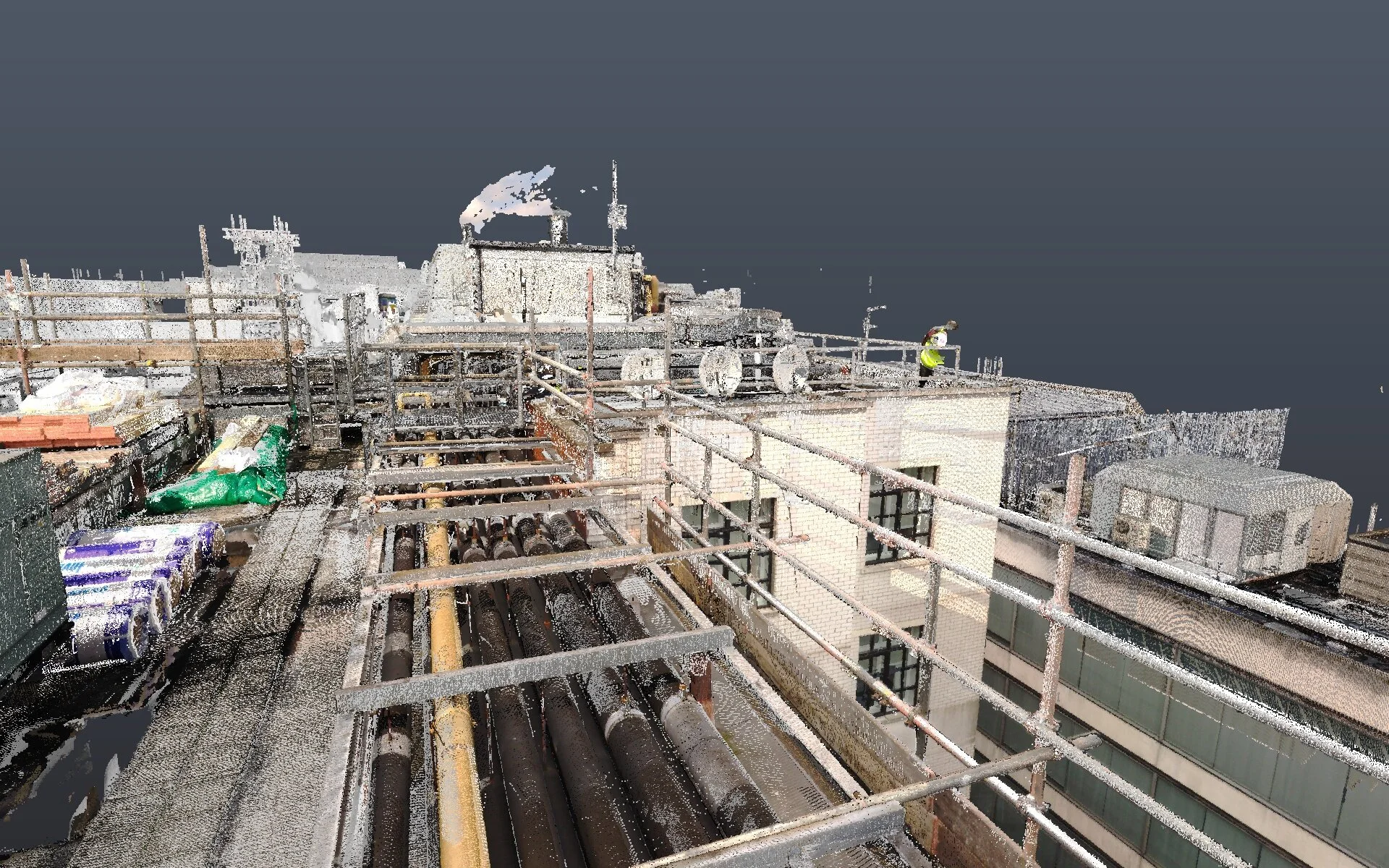

Point cloud and 4K 360 degree photos.
Point cloud and 4K 360 degree photos imported into Autodesk Recap with new pipework design imported from Revit.
Revit :
2D layout drawings.
2D layout drawings produced using Revit. Schedules / automatic material lists created and pipe spool fabrication drawings..
